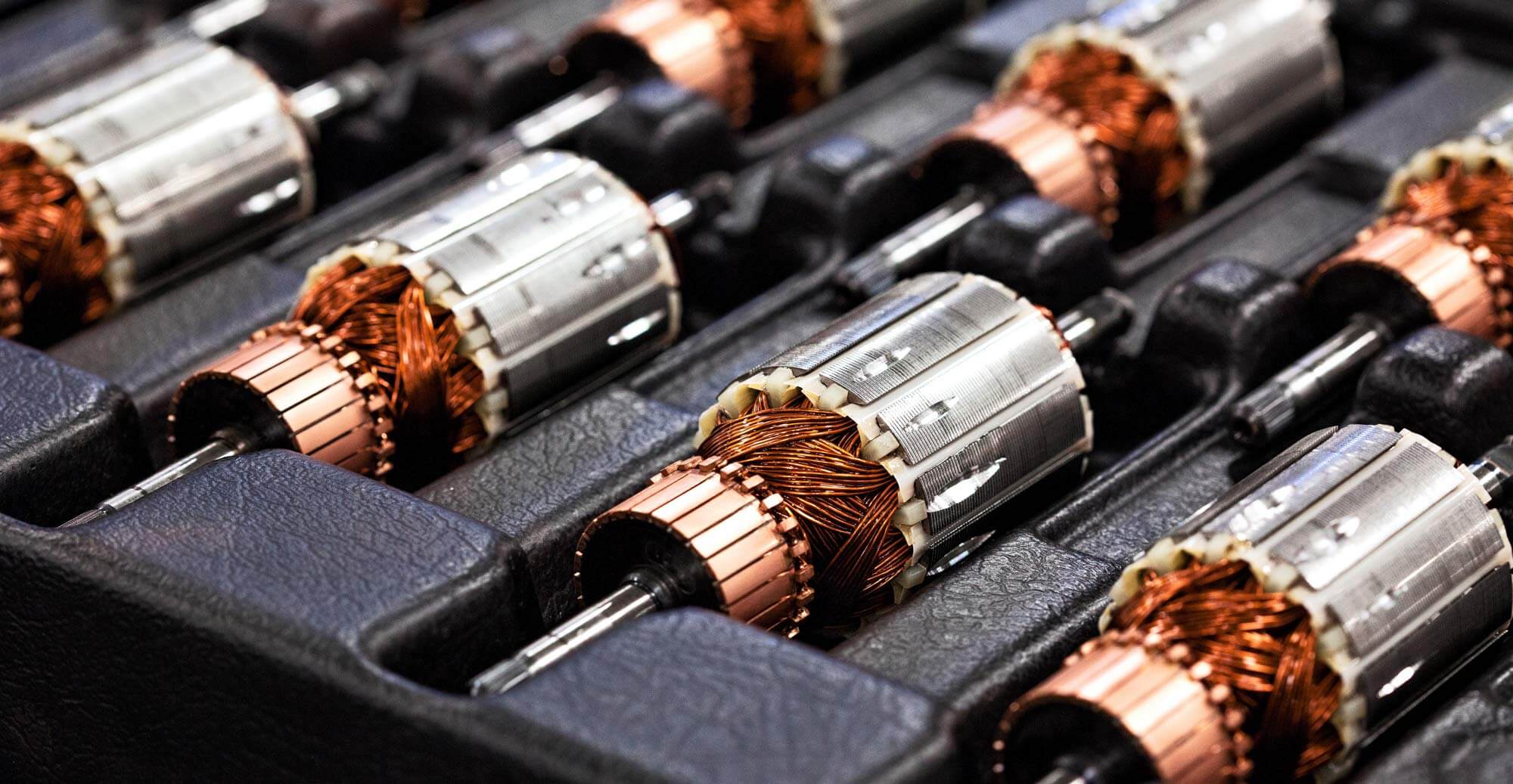

Universal Motors

Our success is based on high performing, durable and high quality motor solutions combined with an efficient automated production process.

Our research and development department has a deep understanding and long experience in the field of electrical motors. The high end universal motors manufactured in our plant in Ankarsrum/Sweden are often used in kitchen appliances such as blenders, stand mixers, grinders and mincers produced by industry leading manufacturers. You also find our motors in other applications such as industrial grinders.

Performance

Nominal voltage : 120 / 240 V AC
Speed range : 0-30 000 rpm
Power : 300-2 200 W
Torque : 0-5 Nm

Design features

Armature diameter : 42 mm
Stack length : 25-50 mm
Shaft diameter : 8-10 mm
Insulation class : A in NA / F in Europe
Ball bearings
Diamond machined commutators for extended brush durability
High frequency commissioning
Application specific mounting brackets and integration
Customised cooling fan and shaft (flat/v-belt pulley)
Extensive range of carbon brush variants
Thermal protection
Speed sensor
EMC protection
CW or CCW rotation

For further information or request please click here to contact us Universal Motor (PDF)

Geared DC Motor

PM4220 Geared DC Motor

We have developed a new compact permanent magnet DC motor with a fully integrated optical encoder. This motor is designed to be an entry model for arc welding. 2 wheel wire feeder.

Armature diameter : 42 mm
Armature length : 20 mm
Nominal voltage : 12-42 V
Gear ratio : 50:1
No load speed range : 60-280 rpm
Motor weight : 0,7 kg
Product data sheets, performance diagrams and 3D models are available upon request.

Go to webshop PM4220 Geared DC motor (PDF)

Geared DC Motor

PM4228 Geared DC Motor

Recently we have developed a new modularised permanent magnet DC motor with a fully integrated optical encoder. This motor is designed to be used in wire feeders for arc welding, health care applications, electrical garage door openers, agricultural equipment and in the printing industry.

Armature diameter : 42 mm
Armature length : 28 mm
Nominal voltage : 12-42 V
Gear ratio : 21:1 / 24:1 / 37.5:1
No load speed range : 150 – 320 rpm
Motor weight : 1 kg
Shaft orientation after transmission : Left / Right

Product data sheets, performance diagrams and 3D models are available upon request.

Go to webshop PM4228 Geared DC motor (PDF) 3D models (stp)

Geared DC Motor

KSV 5035 Geared DC Motor

Our high-end PM DC geared motor is used for arc welding wire feeder units and other industrial applications.

Armature diameter : 50 mm
Armature length : 35 mm
Nominal voltage : 12-42 V
Gear ratio : 24:1 / 49:1
No load speed range : 35 – 250 rpm
Motor weight : 1.7 kg
Shaft orientation after transmission : Left

Product data sheets, performance diagrams and 3D models available upon request.

Go to webshop KSV5035 GEARED MOTOR (PDF)

Geared DC Motor

KSV 4030 Geared DC Motor

This type of motor can be equipped with an internal fan or longer carbon brushes. Every motor type can be adapted to match the needs of the application in terms of speed control, voltage, output shaft design etc.

Armature diameter : 40 mm
Armature length : 30 mm
Nominal voltage : 12-42 V
Gear ratio : 37.5:1 / 75:1 / 125:1
No load speed range : 20 – 255 rpm
Motor weight : 0.9 kg
Shaft orientation after transmission : Left

Product data sheets, performance diagrams and 3D models available upon request.

Go to webshop KSV4030 GEARED MOTOR (PDF)

Brushless DC Motor

BL3525 OR (Outer Rotor) motor

A brushless motor offer several advantages such as high efficiency, long lifespan, and reduced maintenance in comparison with brushed motors. In addition, the outer rotor motor delivers a high torque relative to the motor physical size.
There is a wide range of industrial, aerospace and home automation applications such as servodrives, drones and e-bikes.

Stator diameter: 35 mm
Stator length: 25 mm
Nominal voltage: 12-42 V
Speed range: 0-6000 rpm
Continuous torque : 0.28 Nm
Max torque: 0,8 Nm
Degree of protection: IP20
Motor weight: 0,31 kg

BL3525 OR (Outer Rotor) motor (PDF)

Brushless DC Motor

BL5440 IR (Inner Rotor) motor

A brushless motor offer several advantages such as higher efficiency, longer lifespan, and reduced maintenance. The outgoing shaft can be customised and the motor is equipped with an optical encoder and/or hall effect sensors. The motor can be used for various applications such as wire feeders for three -phase arc welding power sources, agricultural equipment and within the automotive industry.

Stator diameter: 54 mm
Stator length: 40 mm
Nominal voltage: 12-42 V
Gear ratio: 21:1 / 24:1 / 37.5:1 /69:1
Max speed range: 87– 285 rpm
Degree of protection: IP20 Insulation class: F
Motor weight: 1,0 kg
Sensor system: Optical and/or Hall effect
Shaft orientation: Left / Right

BL5440 IR (Inner Rotor) motor (PDF)

Product Range

You can place your order here

450.00

PM4228 DC Geared motors with and without encoder from Ankarsrum Electric Motors.

This product has multiple variants. The options may be chosen on the product page
450.00

KSV 5035 DC Geared motors with and without tachometer and encoder.

This product has multiple variants. The options may be chosen on the product page
450.00

KSV 4030 DC Geared motors from Ankarsrum Electric Motors.

This product has multiple variants. The options may be chosen on the product page
